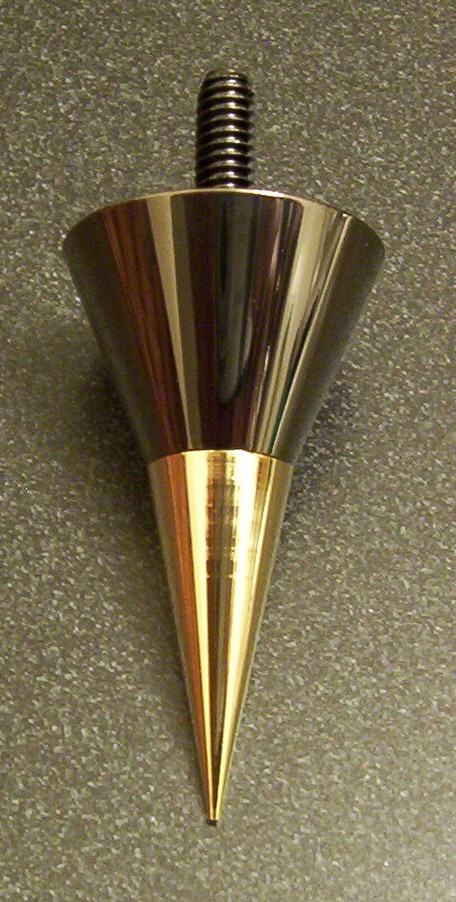

These spikes are
perfect for larger speakers or sub woofers.
They are machined
from brass and have a Black Chrome base and a Gold Nickel tip.
Each spike ordered comes with an all brass gold nickel finished foot cup.
They are
2.10" tall not including threaded rod and are 1.25" wide.
The threads are
available in 1/4-20 (standard) and custom threads of M6 (6mm), 5/16,
M8 (8mm), 3/8, and 1/2". Please see the Speaker Thread Sizes by
Manufacturer page to find the thread size for your speakers.
If your speaker
does not have an insert already installed, no problem. Each spike
comes with a 1/4-20 stud and threaded insert. The threaded insert
can easily be screwed into a 9 mm pre-drilled hole with an M6 or
7/32 Allen wrench. No need for this insert if your speakers already
have inserts installed. Be sure to order the 1/4-20 (standard) to
include the 1/4-20 stud and insert.
These are very
heavy duty spikes and great for larger loudspeakers or subwoofers.
The spikes do not come with
the match floor cups but they can be added to your order by
following this link. Brass
Floor Cups.
** Spike Tip **
- Mount (2) of the 1.50" spikes on the
rear and (2) of the 2.10" spikes to the front of your speaker to
obtain the correct "tilt" for correct imaging.
Not sure of your
threads sizes for your loudspeakers? Click here!
Standard
1/4-20 Thread Size
| Thread
Size |
Price
each |
Black Chrome Base with Gold Tips |
| Standard
1/4-20 |
$10.50 |
|
2.10"
Speaker PDF Drawing
Main Speaker Spike Page
Speaker Spike FAQ Page
Custom Thread
Types
| Thread
Size |
Price
each |
|
| M6
(6mm) |
$12.00 |
|
| 5/16" |
$16.00 |
|
| M8
(8mm) |
$17.00 |
|
| 3/8" |
$18.00 |
|
|
M10 (1.5 pitch) |
$20.00 |
|
