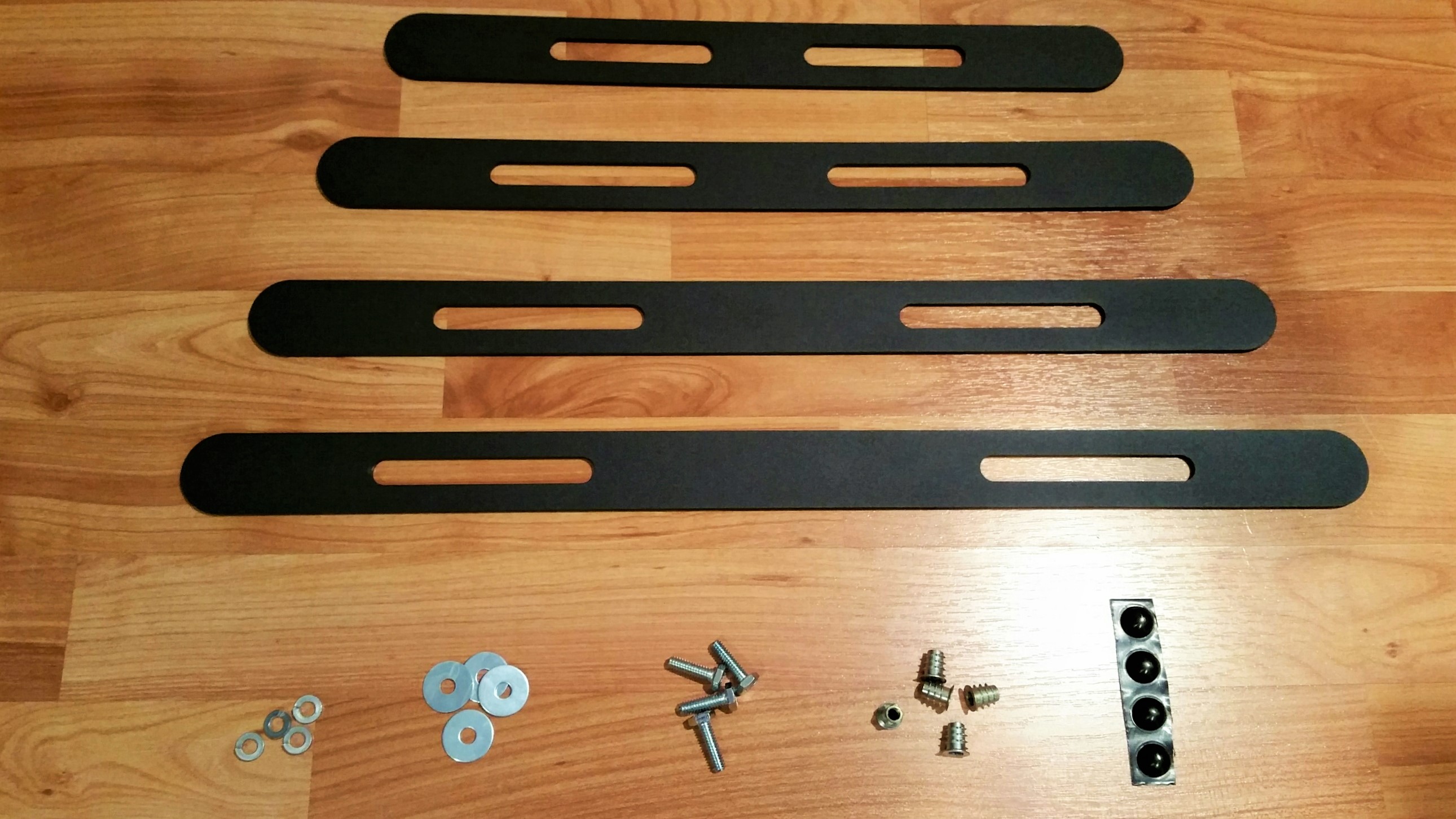

Soundocity Loudspeaker Outriggers |
Steel outriggers
made to fit virtually every loudspeaker in the world. Made from
1/4" steel with 1.50" solid brass cones. Comes with
mounting hardware. |
 |
|
|
|
|
|
|
|
|
|
| Brass
Floor Pads
$3.00 each
$1.35 each
|
Brass Floor Pads
gold & black nickel plating available.
Nickel Pads on Sale.
|
  |
|
|
|
|
|
|
|
|
|
|
$3.50
each
|
2.50" in diamter x
.250" Thick
|
 |
|
|
|
|
|
|
|
|
|
|
.625" Spikes
$2.95 each
|
Brass speaker
spikes with gold & black nickel plating available
Comes with mounting inserts. |
  |
|
| |
|
|
|
|
1.00" Spikes
$8.50 each |
Brass speaker
spike with gold nickel plating
Comes with large foot cup |
 |
|
| |
|
|
|
|
1.375" Spikes
$3.95 each
|
Brass speaker
spikes with gold & black nickel plating available.
Comes with mounting inserts. |
  |
|
| |
|
|
|
|
1.50" Spikes
$9.50
each
|
Brass speaker
spikes with gold & black nickel plating available.
Comes with mounting inserts. Adjustable tips for fine tuning. |
  |
|
| |
|
|
|
|
1.50" Spikes
$9.75 each
|
Brass speaker
spikes with gold nickel base and black nickel tips.
Comes with mounting inserts. Adjustable tips for fine tuning. |
 |
|
| |
|
|
|
|
1.50" Spikes
$9.75 each
|
Brass speaker
spikes with black nickel base and gold nickel tips.
Comes with mounting inserts. Adjustable tips for fine tuning. |
 |
|
| |
|
|
|
|
2.10" Spikes
$10.25 each
|
Brass speaker
spikes with gold & black nickel plating available.
Comes with mounting inserts. Adjustable tips for fine tuning. |
  |
|
| |
|
|
|
|
2.10" Spikes
$10.50 each
|
Brass speaker
spikes with gold nickel base and black nickel tips.
Comes with mounting inserts. Adjustable tips for fine tuning. |
 |
|
| |
|
|
|
|
2.10" Spikes
$10.50 each
|
Brass speaker
spikes with black nickel base and gold nickel tips.
Comes with mounting inserts. Adjustable tips for fine tuning. |
 |
|
| |
|
|
|
|

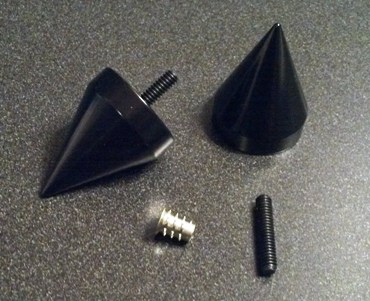

2.00" Spikes
$16.00 each
|
All steel 2" tall x
1.50" wide cones for heavy dutyapplications!
Comes with mounting inserts. |
 |
|
| |
|
|
|
|
Spike Kit
$4.75 each
|
Kit consists of
(4) steel spikes, lock nuts, and mounting inserts
|
 |
|
| |
|
|
|
|
Spike Kit Large
$14.50 each
|
Kit consists of
(4) steel spikes, lock nuts, and mounting inserts
|
 |
|
| |
|
|
|
|
Speaker Stand Spikes
$8.99 each |
Ready to mount in
your existing stands. All
steel. 1" diameter knobs. |
 |
|
| |
|
|
|
|
ImagePods
$3.25 each |
Adhesive backed
pods apply to the bottom of your components. Ultra soft pods
that eliminate most high frequency vibrations. |
 |
|
| |
|
|
|
|
MiniPods
$.75 each
|
Adhesive backed
pods apply to the bottom of your components. Medium durometer
rating. Great component feet replacement. |
 |
|
| |
|
|
|
|
FoculPods
$26.00 |
Foculpods are high end vibration absorbing supports for
components. |
 |
|
| |
|
|
|
|
Rubber Feet
$2.00 each |
Excellent large
rubber feet for your DIY projects. |
 |
|
| |
|
|
|
|
Component Points
$12.00 each |
All brass with
gold nickel plating.
Features threaded height adjustment
for leveling.
Comes with thick floor cup. |
  |
|
| |
|
|
|
|
Speaker
Bases Plinths Outriggers |
Custom made
speaker bases for all types of loudspeakers. Made from 1/4" or
3/8" solid steel with spikes. |
  |
|
| |
|
|
|
|
Adjustable
Speaker Bases Plinths Outriggers |
Adjustable
speaker bases / plinths made from 3/16" solid steel with spikes. |
  |
|
| |
|
|
|
|
Speaker Spikes FAQ
Floorstanding Bases / Plinths / Picture
Gallery
(Please click on
the pictures of these spikes to get more specific spikes data and
ordering information)
Check
for your speaker thread size here!!
One of the best bang-for-the-buck
tweaks can be found by stopping acoustic feedback from your speakers
and separating your amp or other audio components from vibration.
By installing spikes onto speakers you find a result of much better
sound with a more tight bass and a clearer middle. By use of spikes
under your speakers you stop much of the vibrations in the speaker
from transferring to the floor and this results in much less noise
to be transferred to other rooms. Put your music in the air, not the
floor.
Spiking a speaker does two things:
Holds the speaker stationary. This is done by the spike
penetrating the carpet and then sticking into the sub floor…
slightly. This holds the speaker rigidly in place. You can get a
similar effect using rubber feet, but it's not as rigid and can
flex. By holding a speaker stationary you stop the speaker from
using its energy to move the enclosure. Sound ridiculous? If you
place a micrometer against the side of an enclosure you can measure
the back and forth movement. It is very slight and the largest swing
I have measured is .0006" at the base. When you consider the
amount of energy (HP) required to move this 45 lb speaker
.0006" it is significant. This measurement was taken from a
speaker without feet and on carpet. This is robbing the speaker of
sound potential.
Reduces base to floor contact vibration. Spiking a speaker
also reduces the contact surface of the speaker with the floor. Thus
reducing the amount of vibration that can pass into the floor. Once
the energy from a speaker is transferred into the floor it becomes
non-directional. This means is will go wherever it wants, usually
into another room or apartment where everyone can enjoy the little
thumps thumps. These vibrations also have a negative impact on
surrounding components.
There is a reason the high end speaker manufactures use speaker
spikes; they add value to the speaker’s performance. The tones
will be more focused and tighter and you will have more useable
power.
Brass is considered the best material type to make spikes from
because of it's very high specific gravity (density).
Please click on the different pictures above to get more specific
data and ordering information.
