Accuton Speaker Model

Part Number
2” CERAMIC DOME MIDRANGE C44-8

• 2” CERAMIC DOME MIDRANGE
• Response to @12kHz

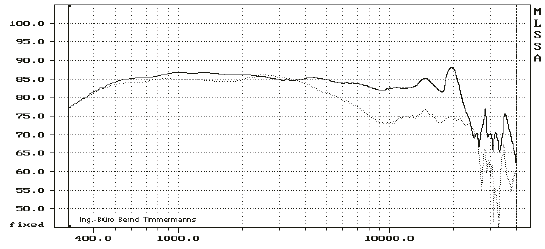

• Flat on- and off- axis response from 400 Hz
• Very high resolution
• Ferrofluid loaded
• Flange 106x106mm
• Cut-out 89 x 89mm
• Depth 67mm

Znom 8 ohm
Re 8.2 ohm
Le@1kHz 24.6 mH
fs 390 Hz
Qms 1.19
Qes 2.2
Qts .77
Mms 1.3 g
Cms 0.13 mm/N

Sd .02 cm 2
BL 3.47 N/A
Vas .11 ltrs
Xmax 0.8 mm peak
VC Ø 30.4 mm
Sensitivity
1W / 1m 88.5 dB
Nom. Power 130 W
Net weight 680 g
