Accuton Speaker Model

• 3” CERAMIC DOME MIDRANGE

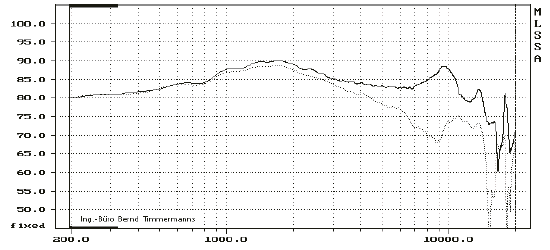

• Good dispersion up to 5 kHz
• Very high resolution
• Requires 1.5 to 4 liter sealed chamber
• Flange 130x130mm
• Cut-out 116x116mm
• Depth 75mm

Znom 6 ohm
Re 5.8 ohm
Le@1kHz .12 mH
fs 96 Hz
Qms .96
Qes 1.07
Qts .51
Mms 7.2 g
Cms .39 mm/N
