¾” PURE DIAMOND DOME TWEETER D20-6

• ¾” PURE DIAMOND DOME TWEETER

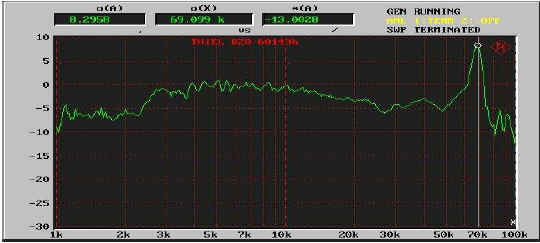

• Response to @100kHz
• Extremely low harmonic distortion
• High sound propagation
• Ferrofluid loaded
• Flange 82 x 82mm
• Cut-out 64x 64mm
• Depth 56mm

Znom 6 ohm
Re 6.0 ohm
Le@1kHz 0.04 mH
fs 900 Hz
Qms -Qes
-Qts
-Mms 0.09 g
Cms - mm/N

Sd 6.0 cm 2
BL - N/A
Vas - ltrs
Xmax - mm peak
VC Ø 18.9 mm
Sensitivity :1W / 1m 89.5 dB
Nom. Power 200 W
Net weight 430 g
