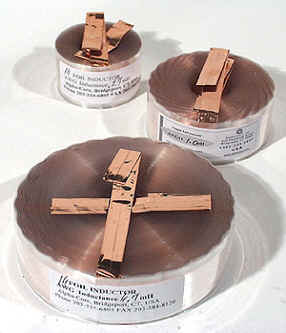

         Goertz Inductors

Goertz Inductors

No Longer Offered at Oregondv.com

99.99% pure copper foil
0.002" thick polypropylene film coating
Negligible skin-effect below 100kHz
Flat inductive reactance from 5Hz through 50kHz
No saturation distortion
Extremely low stored charge
Cool operation, good heat dissipation
High winding tension and vacuum fusing reduces FM distortion
Negligible power loss due to skin-effect
Highest space factor (ratio of conductor cross section to total cross section) means lower DC resistance

14 AWG SILVER

SPECIAL ORDER

mH DCR Diameter mm
0.1 0.046 1.6
0.15 0.05 1.7
0.2 0.063 1.8
0.22 0.065 1.8
0.27 0.072 1.9
0.3 0.075 2
0.33 0.076 2
0.39 0.087 2.1
0.47 0.101 2.2
0.56 0.12 2.3
0.68 0.142 2.4
0.82 0.161 2.6
1 0.173 2.7
1.2 0.202 2.8
1.5 0.231 3
16 AWG COPPER
mH DCR Diameter mm
0.1 0.078 1.3
0.15 0.086 1.4
0.22 0.112 1.5
0.25 0.12 1.6
0.27 0.124 1.6
0.3 0.129 1.8
0.33 0.13 1.9
0.39 0.15 2
0.47 0.173 2.1
0.5 0.19 2.1
0.56 0.204 2.2
0.62 0.217 2.2
0.68 0.242 2.3
0.75 0.25 2.4
0.82 0.276 2.5
1 0.295 2.6
1.2 0.343 2.7
1.5 0.394 2.9
14 AWG COPPER
mH DCR Diameter mm
0.1 0.05 1.6
0.15 0.054 1.7
0.22 0.071 1.8
0.25 0.076 1.8
0.27 0.078 1.9
0.3 0.082 2
0.33 0.083 2
0.39 0.095 2.1
0.47 0.11 2.2
0.5 0.118 2.2
0.56 0.13 2.3
0.62 0.148 2.3
0.68 0.154 2.4
0.75 0.162 2.5
0.82 0.175 2.6
1 0.188 2.7
1.2 0.22 2.8
1.5 0.251 3
1.8 0.3 3.2
2 0.315 3.3
2.2 0.332 3.4
2.7 0.37 3.5
3.3 0.421 3.7
3.9 0.477 3.9
4.7 0.547 4.1
6 0.648 4.5
12 AWG COPPER
mH DCR Diameter mm
0.1 0.032 1.7
0.15 0.034 1.8
0.22 0.045 1.9
0.25 0.047 2
0.27 0.049 2
0.3 0.052 2
0.33 0.053 2.1
0.39 0.06 2.2
0.47 0.07 2.3
0.5 0.08 2.4
0.56 0.083 2.4
0.62 0.09 2.4
0.68 0.098 2.5
0.75 0.1 2.6
0.82 0.111 2.7
1 0.12 2.8
1.2 0.141 2.9
1.5 0.16 3.1
Please e-mail for bulk pricing!
