400A continuous
current.

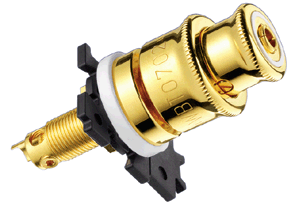

The ultimate
pole terminal for demanding applications.
Patented
clamping mechanism for high compression connection of spade
connectors and crimped wire ends up to 6mm2 (10awg).
Patented locking
device for banana plugs.
New milled
groove on both sides of compression plates for high strength
connection of spades.
Color code: red,
white or black.
Can be soldered
or crimped. With a 400 ampere continuous
current capability, this is the perfect size binding post for
demanding applications. A patented clamping mechanism makes it
possible for high compression connection of spades and crimped
wire ends up to 6mm˛ (10AWG). By means of a collet chucking
device, any 4mm˛ banana plug can be securely clamped. Milled
grooves on both sides of the compression plate provide high
strength for connection of spades. NO TOOLS required to provide
a secure connection. Finger tightening is all that is required.
This connector will not fit on a 3/4” or 19mm center to center
spacing. |
